Ballast Control

Functions to control the ballast pump for altitude. More...

Defines
#define	BALLAST_3D_FIX_COUNT   10
	Number of consecutive 3D GPS fixes required to assert altitude as valid.
#define	BALLAST_HOLD_ALTITUDE   30500l
	Altitude in feet used to control ballast pump.
Enumerations
enum	BALLAST_MODE { WAIT_ACTIVATION, CONTROL_ALTITUDE, PUMP_RUN, PUMP_RUN_DELAY }
	Ballast pump state machine. More...
Functions
uint16_t	ballastGetPumpCount ()
	Return the number of times the ballast pump has been commanded to run.
void	ballastInit ()
	Setup the ballast controls system.
void	ballastSetState (bool_t state)
	Set the ballast control operation.
void	ballastLogEvent (bool_t state)
	Log the ballast pump command on or off.
void	ballastCheck ()
	Function that should be called once a second with each GPS fix to determine ballast pump operation.
Variables
uint16_t	ballastPumpCount
	Number of times the ballast pump has been commanded to run.
uint8_t	ballast3DFixCount
	Count of 3D fixes required to assert GPS altitude is valid.
uint8_t	ballastTimeCount
	Counter used to track number of seconds pump is on or off.
BALLAST_MODE	ballastMode
	Enumerated type that indicates the current ballast mode.
bool_t	ballastState
	Flag used to enable/disable ballast control.

---

Detailed Description

Functions to control the ballast pump for altitude.

---

Define Documentation

#define BALLAST_3D_FIX_COUNT   10

Number of consecutive 3D GPS fixes required to assert altitude as valid.

Referenced by ballastCheck().

#define BALLAST_HOLD_ALTITUDE   30500l

Altitude in feet used to control ballast pump.

Referenced by ballastCheck().

---

Enumeration Type Documentation

enum BALLAST_MODE

Ballast pump state machine.

Enumerator:

WAIT_ACTIVATION	Wait 90 minutes after boot or higher than BALLAST_HOLD_ALTITUDE to activate ballast pump.
CONTROL_ALTITUDE	Determine if altitude is less than BALLAST_HOLD_ALTITUDE.
PUMP_RUN	Run the ballast pump.
PUMP_RUN_DELAY	Time delay after ballast pump runs to determine effects of fluid loss.

---

Function Documentation

void ballastCheck

(

)

Function that should be called once a second with each GPS fix to determine ballast pump operation.

References ballast3DFixCount, BALLAST_3D_FIX_COUNT, BALLAST_HOLD_ALTITUDE, ballastLogEvent(), ballastMode, ballastPumpCount, ballastState, ballastTimeCount, CONTROL_ALTITUDE, GPS_3D_FIX, gpsGetFixType(), gpsPosition, IO_BALLAST_PUMP, PUMP_RUN, PUMP_RUN_DELAY, timeGetHours(), timeGetMinutes(), and WAIT_ACTIVATION.

Referenced by main().

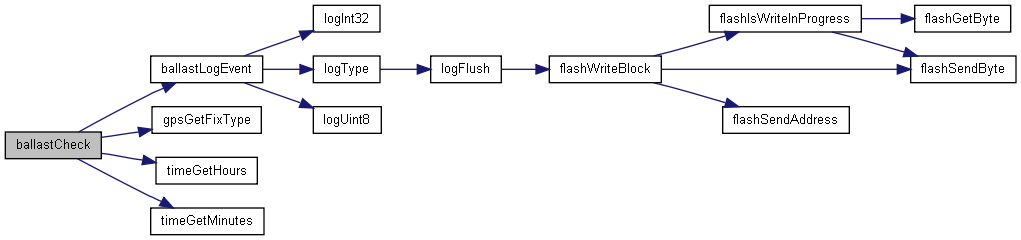

Here is the call graph for this function:

uint16_t ballastGetPumpCount

(

)

Return the number of times the ballast pump has been commanded to run.

Returns:

run count

References ballastPumpCount.

Referenced by psk31CreateDataPacket().

void ballastInit

(

)

Setup the ballast controls system.

References ballast3DFixCount, ballastMode, ballastPumpCount, ballastState, ballastTimeCount, and WAIT_ACTIVATION.

Referenced by main().

void ballastLogEvent

(

bool_t

state

)

Log the ballast pump command on or off.

Parameters:

state

boolean that indicates if pump was turned on or off

References gpsPosition, LOG_PUMP, logInt32(), logType(), and logUint8().

Referenced by ballastCheck().

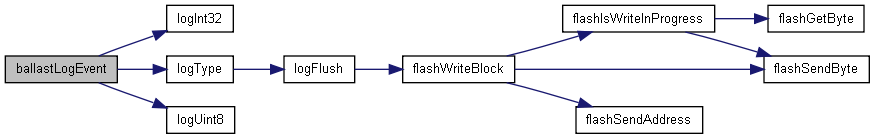

Here is the call graph for this function:

void ballastSetState

(

bool_t

state

)

Set the ballast control operation.

Parameters:

state

true to enable pump operation; otherwise false

References ballastState.

---

Variable Documentation

uint8_t ballast3DFixCount

Count of 3D fixes required to assert GPS altitude is valid.

Referenced by ballastCheck(), and ballastInit().

BALLAST_MODE ballastMode

Enumerated type that indicates the current ballast mode.

Referenced by ballastCheck(), and ballastInit().

uint16_t ballastPumpCount

Number of times the ballast pump has been commanded to run.

Referenced by ballastCheck(), ballastGetPumpCount(), and ballastInit().

bool_t ballastState

Flag used to enable/disable ballast control.

Referenced by ballastCheck(), ballastInit(), and ballastSetState().

uint8_t ballastTimeCount

Counter used to track number of seconds pump is on or off.

Referenced by ballastCheck(), and ballastInit().
